- Quartz Crystal
- Crystal Unit
| Frequency Range 频率范围 | 3.579545-80.000MHz |
| Load Capacitance 负载电容 | 10pf to Series |
| Frequency Tolerance At 25℃ 频率偏差 | ±30ppm Maximum |
| Frequency Stability At –10 to +60℃ 频率稳定性 | ±30ppm Maximum |
| Operating Temperature Range 工作温度范围 | -10 to +60℃ |
| Storage Temperature Range 贮藏温度范围 | -40 to +85℃ |
| Equivalent Series Resistance(ESR) 阻抗 | See ESR Table |
| Drive Level 驱动功率 | 1.0mw Maximum |
| Shunt Capacitance 并电容 | 7pf Maximum |
| Aging 老化率 | ±5ppm Per Year |
| Insulation Resistance 绝缘阻抗 | 500 Mohm Minimum |
| A | B | C | D | E | |

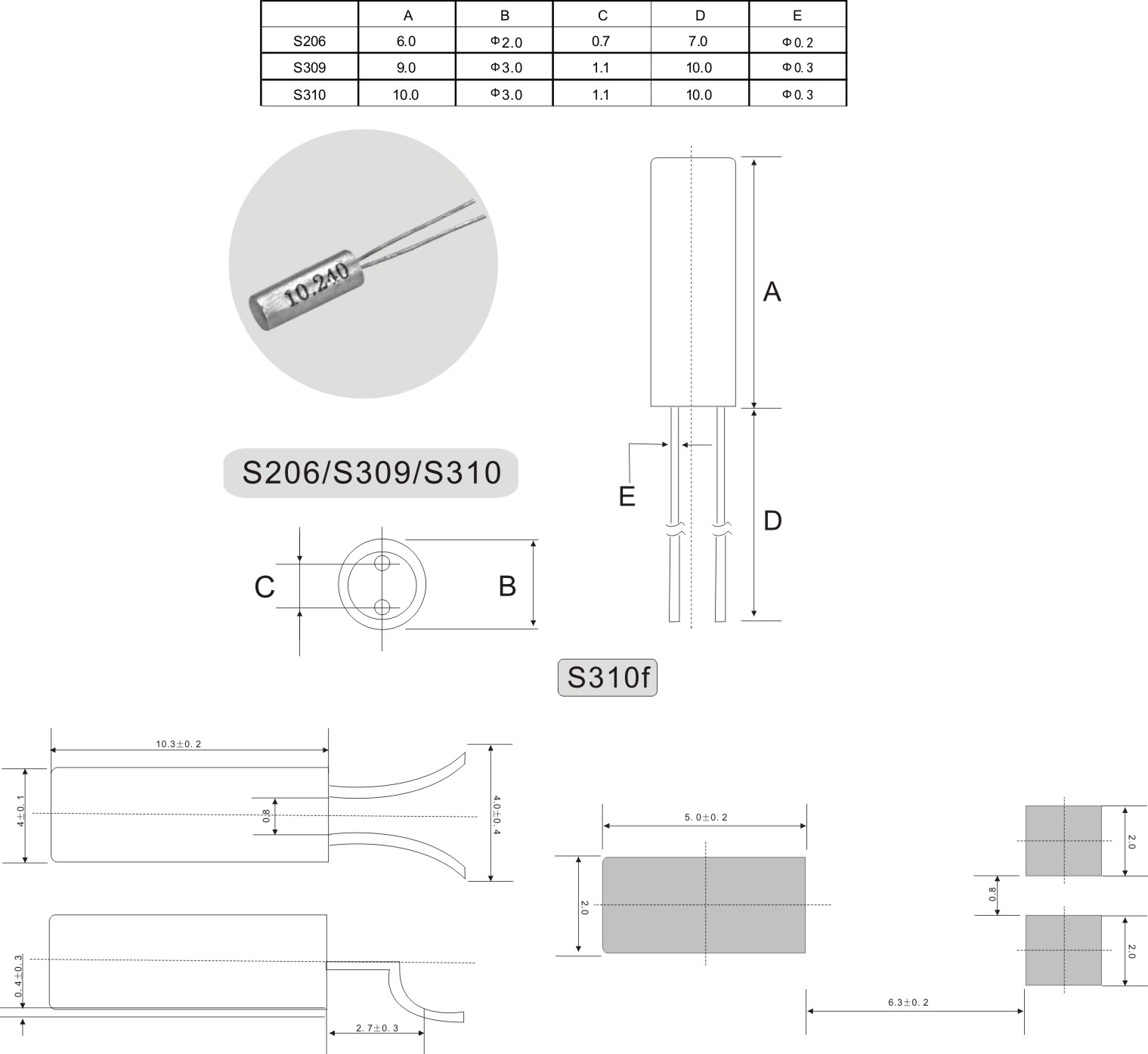

| S206 | 6.0 | Ф2.0 | 0.7 | 7.0 | Ф0.2 |
| S309 | 9.0 | Ф3.0 | 1.1 | 10.0 | Ф0.3 |
| S310 | 10.0 | Ф3.0 | 1.1 | 10.0 | Ф0.3 |
| S310F | 10.0 | Ф3.0 | 1.1 | 10.0 | Ф0.3 |
| Frequency Range And Oscillation Mode | ||||
| Fundamental (F) | Third Overtone (3OT) | |||
| 3.579545-30.000MHz | 24.000-60.000MHz | |||
| Operating Temperature Range | ||
| B For –10 to +60℃ |
| ESR Table (Ohm) | |||||
| 3.5-4.0MHz | 4.0-8.0MHz | 8.0-14MHz | 14-24MHz | >24MHz | |
| 150 | 100 | 60 | 40 | 40(F) | 80(3OT) |
