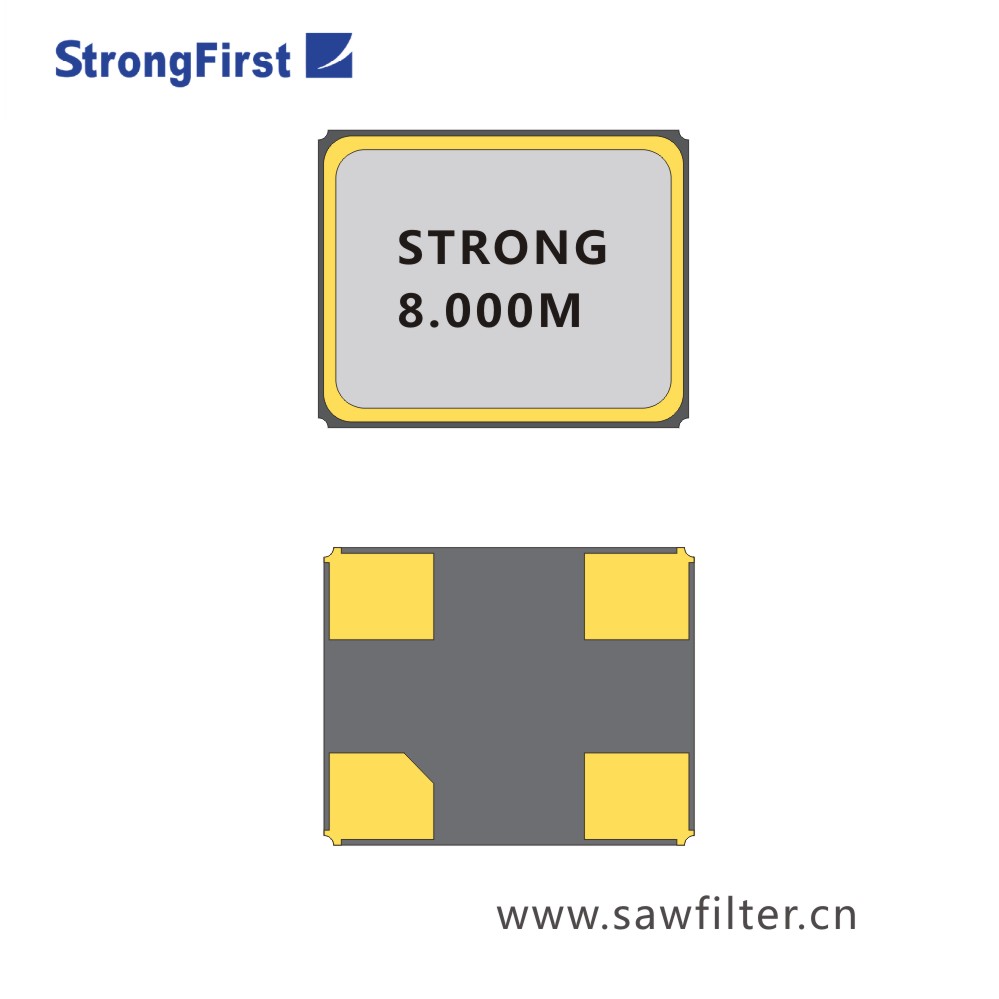

A high precision small surface-mount type crystal unit, suitable for mobile communications such as the base clock of mobile phone handsets.

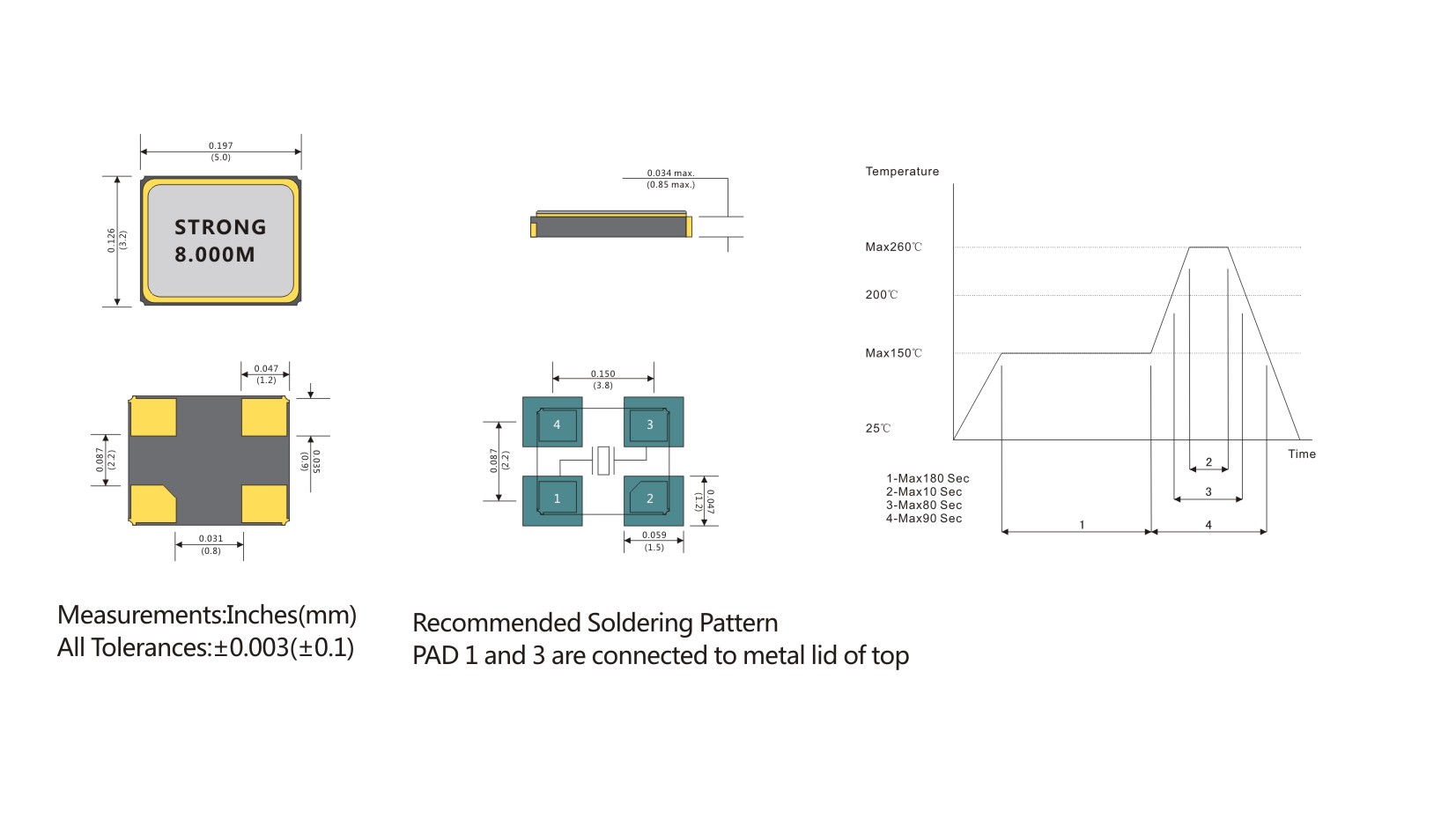

Compact and thin. (5.0 × 3.2 × 0.85 mm typ.)
Frequencies for the base clock source of a variety of mobile phones are available.
Excellent electrical characteristics and environmental performance, ideal for mobile communication applications.
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
| Type | SMD Crystal UNITS 5.0*3.2*0.85mm | |
| Freq. range | Fundamental | 7.6 ~ 54.0MHz |
| 3rd | 40.0 ~ 156.25MHz | |
| Vibration mode | AT cut , Fundamental , 3rd | |
| Frequency tolerance（at 25℃） | -/+10ppm , -/+30ppm , or specify | |
| Equivalent series resistance | See table No.1 | |
|
Frequency stability over operating temperature range | -/+10ppm , -/+30ppm , or specify | |
| Operating temperature range | -10 ~ +60℃ , or specify | |
| Drive Level | 300uW Max. | |
| Shunt capacitance | 5.0pF Max. | |
| Load capacitance | 16pF, 18pF, 20pF, or specify | |
| Aging | -/+2ppm/year , -/+5ppm/year | |
| Min. Packing | 1,000pcs/Reel | |
| Equivalent series resistance(ESR) Table No.1 | ||||||
| Frequency | 7.6~11.9 MHz | 12.0~13.9 MHz | 14.0~19.9 MHz | 20.0~54.0 MHz | 40.0~59.0 MHz | 60.0~156.25 MHz |
| Mode | Fundamental | Fundamental | Fundamental | Fundamental | 3rd | 3rd |
| ESR | 100 ohms Max. | 60 ohms Max. | 50 ohms Max. | 40 ohms Max. | 70 ohms Max. | 60 ohms Max. |
