Ideal for such as bluetooth, Wifi, smartphone and tablet pc.

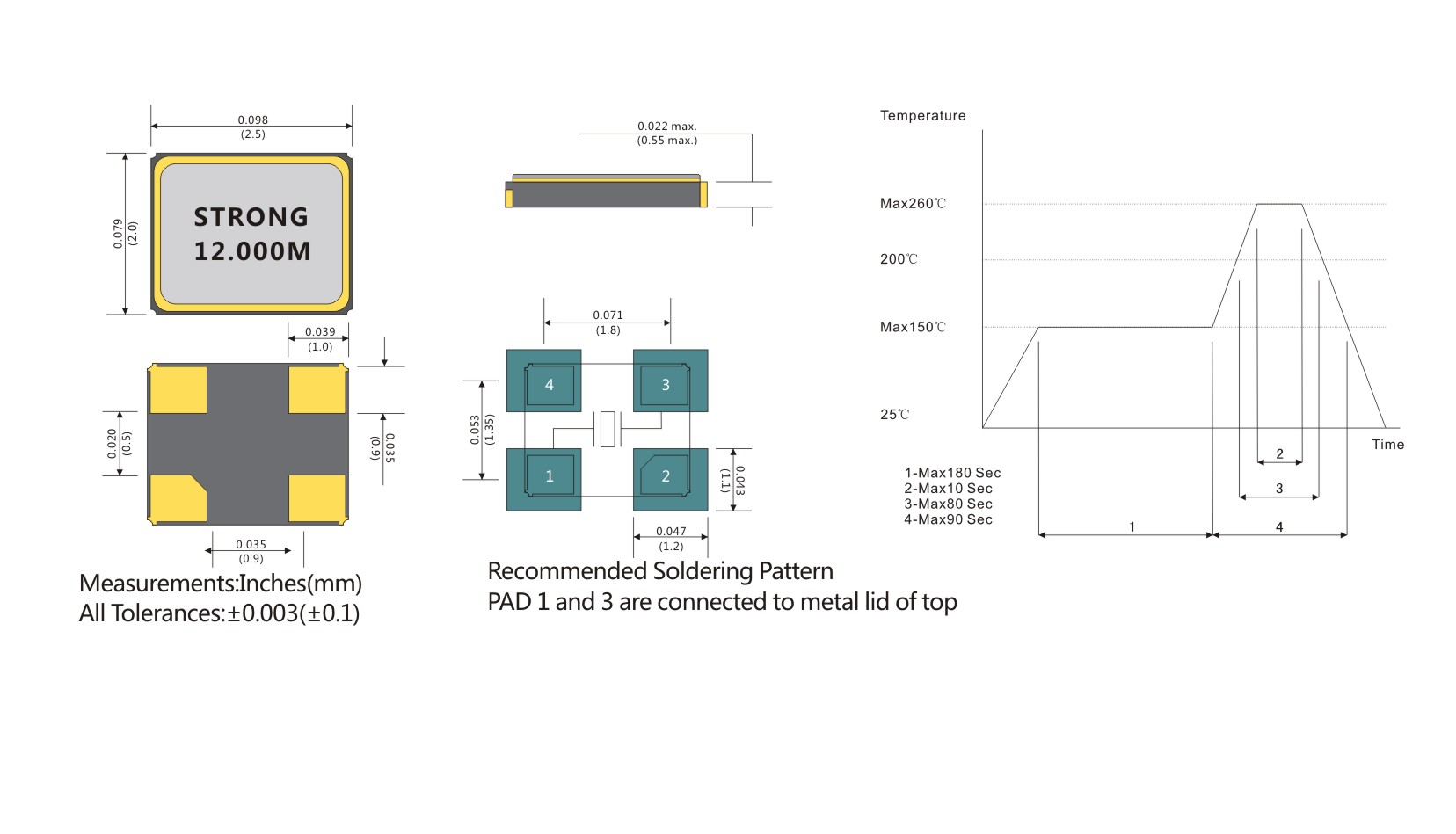

Compact and thin. (2.5 × 2.0 × 0.55 mm)
Excellent environmental characteristics, including heat and shock resistance.
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
| Type | SMD 2.5*2.0*0.55mm |
| Freq. range | 12.0 ~ 80.0MHz |
| Vibration mode | AT cut , Fundamental |
| Frequency tolerance（at 25 °C） | -/+10ppm , -/+30ppm , or specify |
| Equivalent series resistance | See table No.1 |
| Frequency stability over operating temperature range | -/+10ppm , -/+30ppm , or specify |
| Operating temperature range | -10 ~ +60℃ , or specify |
| Drive Level | 100uW Max. |
| Shunt capacitance | 3.0pF Max. |
| Load capacitance | 9pF, 12pF, or specify |
| Aging | -/+2ppm/year , -/+5ppm/year |
| Min. Packing | 3,000pcs/Reel |
| Equivalent series resistance(ESR) Table No.1 | ||||
| Frequency | 12.0~15.0 MHz | 16.0~20.0 MHz | 21.0~30.0 MHz | 31.0~80.0 MHz |
| Mode | Fundamental | Fundamental | Fundamental | Fundamental |
| ESR | 180 ohms Max. | 150 ohms Max. | 100 ohms Max. | 60 ohms Max. |
