CMOS output.

Low phase noise.

Enable / disable tristate function.

Low power consumption.

Product Introduction

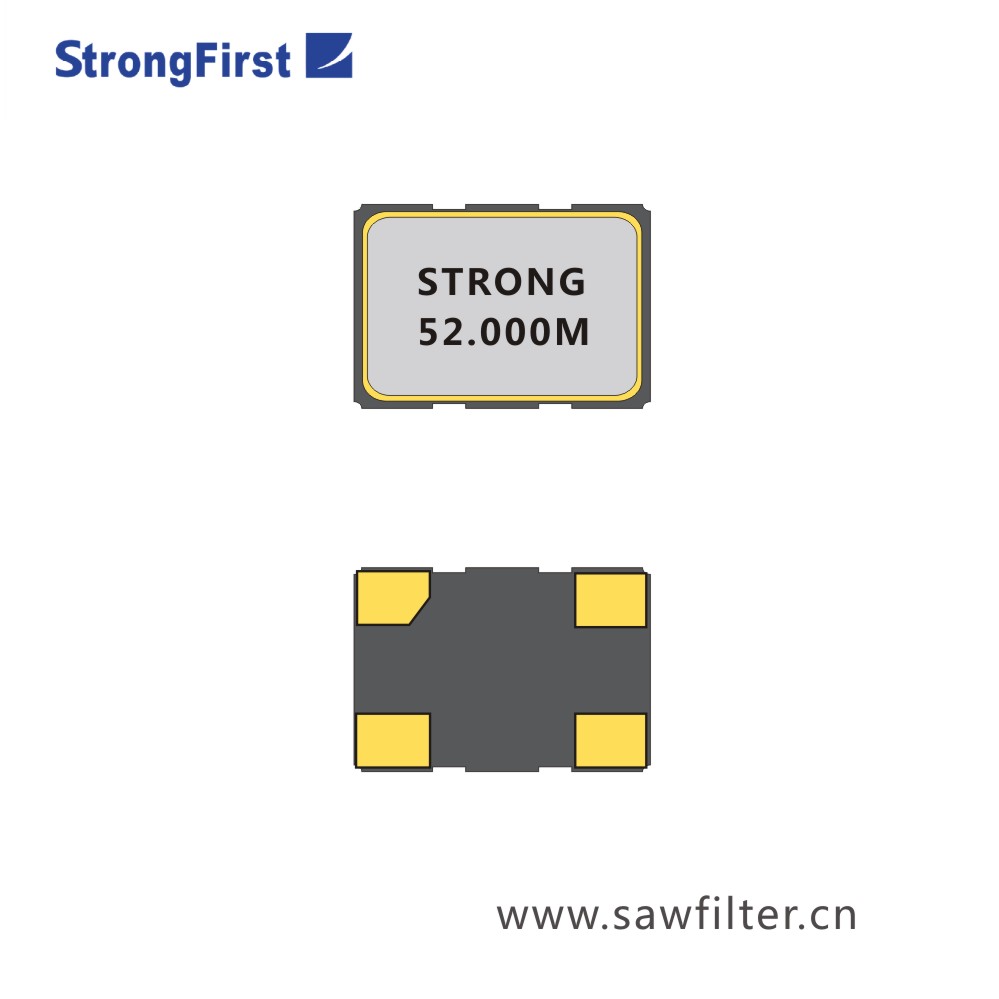

Type SMD TCXO (CMOS Output) 3.2*2.5*1.2mm
Supply Voltage 1.8~3.3V
Freq. range 10.0 ~ 52.0MHz
Frequency Tolerance at 25℃ ±2.0ppm Max. (After 2 times reflows)
Frequency Stability Ref. 25℃ ±2.5ppm
Operating Temperature Range -30~+85℃
Storage Temperature Range -55~+125℃
Current 10mA Max.
Load 15pF
Output Level CMOS
Output Symmetry 45~55%(VT=1/2VDD)
Rise Time/Fall Time 5nS Max.
Start-up Time 10mS Max.
Phase Noise(10kHz offset) -145dBc/Hz Typ.
Min. Packing 3,000pcs/Reel
>>
