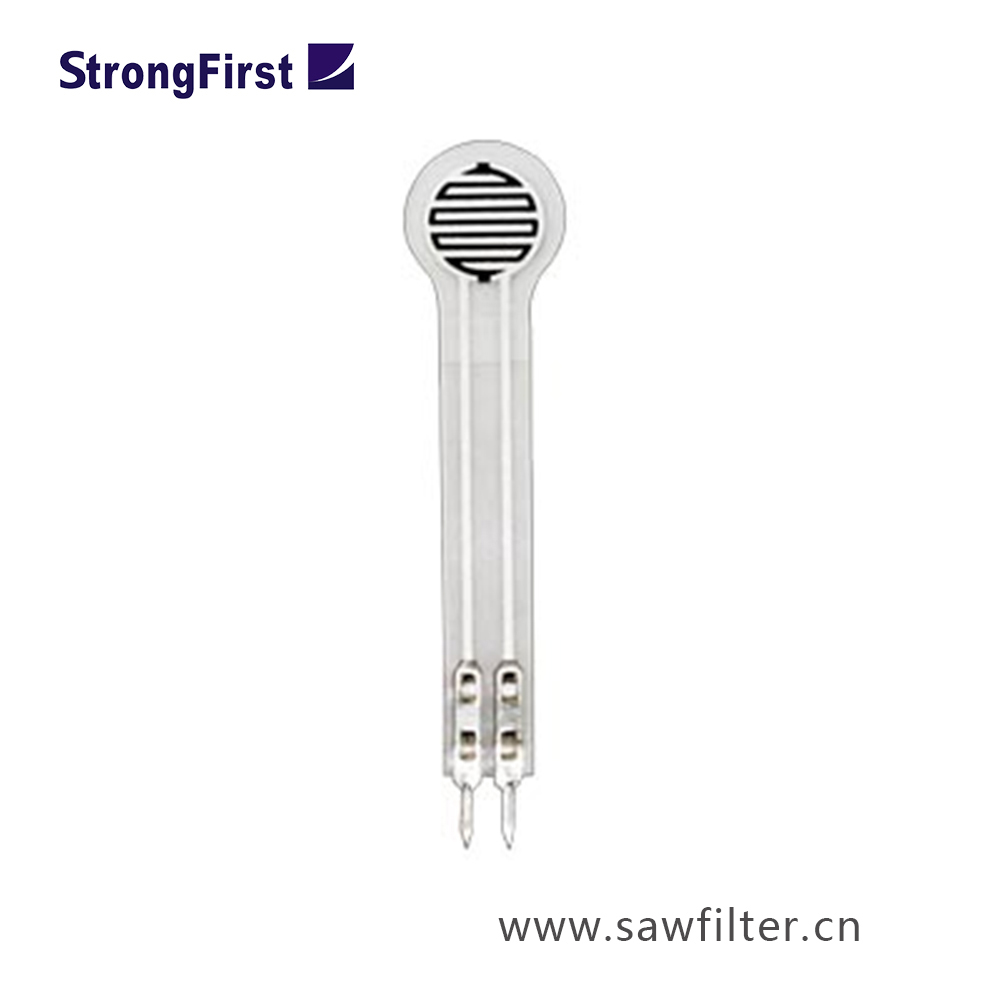

Film Pressure Sensor DF020-40@20kg
Film pressure sensor DF20-40@20kg is based on new-type nanometer pressure sensitive materials, which supplemented by ultrathin film substrate of Young’s modulus and disposable pater. It has both waterproof and pressure-sensitive functions. The resistance value of the sensor changes when the sensor perceives pressures from the outside. The pressure signal can be converted into the corresponding electrical signals with a simple circuit.
Size can be customized.
Thickness is less than 0.3mm.
Certified by ROHS.
Technical parameters :
Performance
Parameter
Force Range
0-20kg
Thickness
< 0.3mm
Sensitive Point
< 70g
Repeatability
<±6.6%(50% of the load )
Precision
±5%
Durability
＞1 Million times
Initial Resistance
＞10MΩ(Unloaded)
Response Time
< 1ms
Recovery Time
< 15ms
Testing Voltage
DC 3.3V
Working Temp
-20°C - 60°C
EMI
N/A
ESD
N/A
