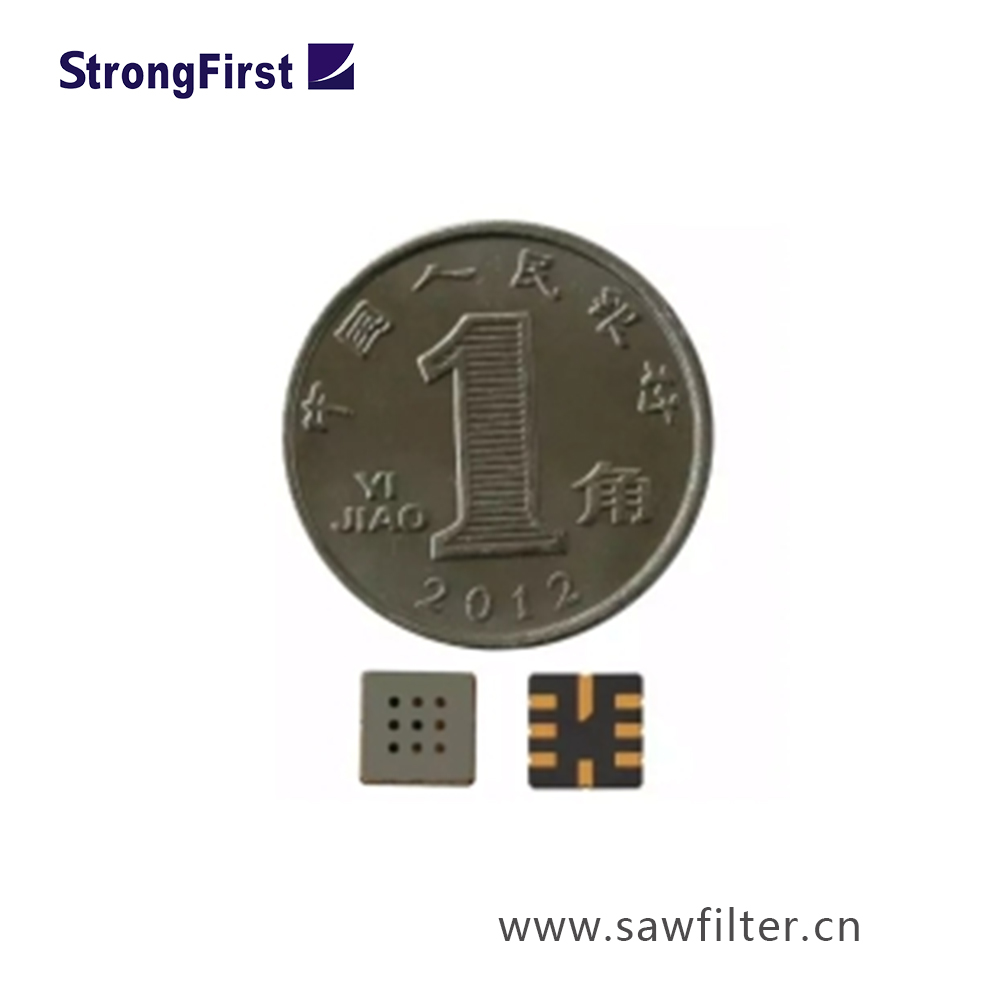

GM-597B MEMS Combustible Gas Sensor
Principle Introduction:
MEMS combustible gas sensor is using MEMS micro-fabrication hot plate on a Si substrate base, gas-sensitive materials used in the clean air with low conductivity metal oxide semiconductor material. When the sensor exposed to gas atmosphere, the conductivity is changing as the detected gas concentration in the air. The higher the concentration of the gas, the higher the conductivity. Use simple circuit can convert the change of conductivity of the gas concentration corresponding to the output signal.
Applications :
Gas leak detection for mobile phones, computers and other consumer electronics applications; also apply for home, commercial use of the combustible gas leakage monitoring devices, gas leak detectors, fire / security detection system.
Technical parameters :
Part No. | GM-597B | ||
Sensor Type | MEMS | ||
Standard Encapsulation | Ceramic | ||
Detection Gas | CH4, C3H8 &etc. | ||
Detection Range | 1~10000ppm (C3H8) | ||
Standard Circuit Conditions | Loop Voltage | VC | ≤24V DC |
Heater Voltage | VH | 2.8V±0.1V AC or DC | |
Load Resistance | RL | Adjustable | |
Sensor character under standard test conditions | Heater Resistance | RH | 80Ω±20Ω(room temperature) |
Heater consumption | PH | ≤80mW | |
sensitive materials resistance | RS | 1KΩ~30KΩ(in 5000ppm CH4) | |
Sensitivity | S | R0(in air)/Rs(in 5000ppmCH4)≥2 | |
Concentration Slope | α | ≤0.9(R5000ppm/R1000ppmCH4) | |
Standard test conditions | Temp. Humidity | 20℃±2℃;55%±5%RH | |
Standard test circuit | VH:2.8V±0.1V;VC :5.0V±0.1V |
