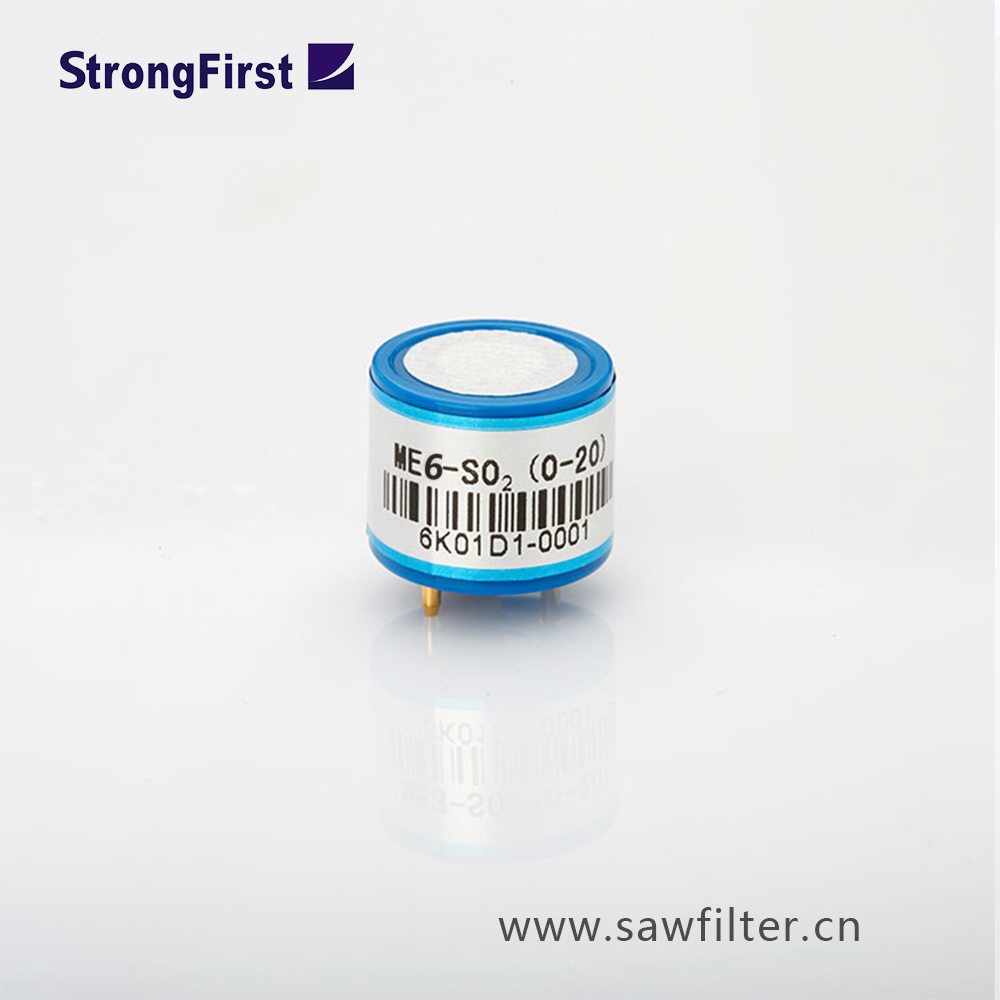

ME6-SO2 Gas Sensor
Principle Introduction:
Strong First Electronics, produces sulphur dioxide/SO2 gas sensor, by measuring current based on the electrochemical principle, for industrial use.
ME6-SO2 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Applications :
Widely used in industrial and environmental protection fields.
Technical parameters :
Item | Parameter |
Detection gas | SO2 sensor, sulphur dioxide gas sensor |
Measurement Range | 0~20ppm |
Max detecting concentration | 150ppm |
Sensitivity | (0.55±0.15)µA/ppm |
Resolution ratio | 0.1ppm |
Response time(T90) | <30S |
Bias voltage | 0mV |
Load resistance(recommend) | 10Ω |
Repeatability | <2﹪output value |
Stability(/month) | <2﹪ |
Output Linearity | linear |
Zero drift(-20℃~40℃) | ≤0.2ppm |
Storage temperature | -20℃~50℃ |
Storage Humidity | 15﹪~90﹪RH |
Pressure range(kPa) | 90-110 |
Anticipated using life | 2 years(In air) |
