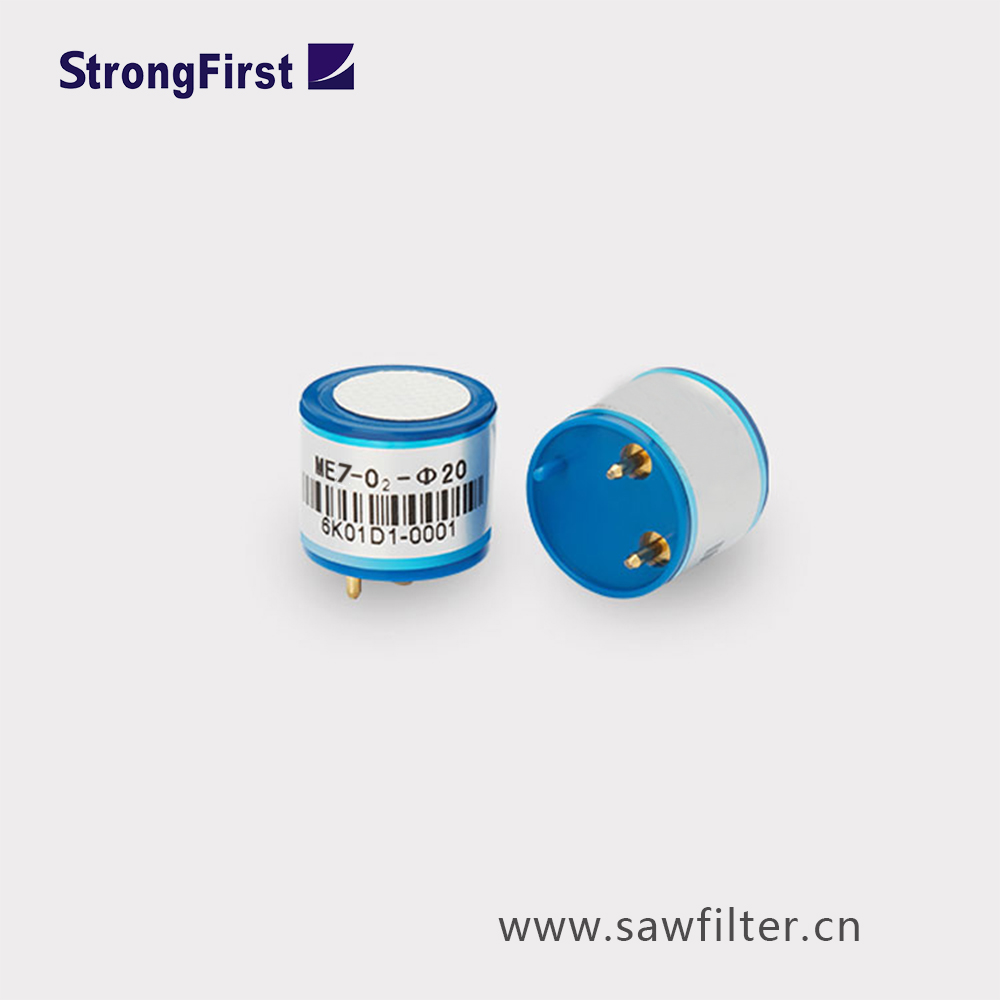

ME7-O2-Ф20 Oxygen Sensor
Principle Introduction:
Strong First Electronics produce oxygen gas sensor, O2 sensor, adopting fuel cell working principle.
ME7-O2-Ф20 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Applications :
Detecting O2 in mine, industry and environmental protection field.
Technical parameters :
Item | Parameter |
Detection gas | O2, oxygen sensor |
Measurement Range | 0~25%Vol |
Max detecting concentration | 30%Vol |
Sensitivity | (0.1~0.3)mA (In air) |
Response time(T90) | ≤15S |
Load resistance(recommended) | 100Ω |
Repeatability | <2﹪output value |
Stability(/month) | <2﹪ |
Zero drift(-20℃~40℃) | ≤0.1%vol |
Storage temperature | -20℃~50℃ |
Storage Humidity | 0﹪~99﹪RH |
Pressure range | normal atmosphere±10% |
Anticipated using life | 2 years |
