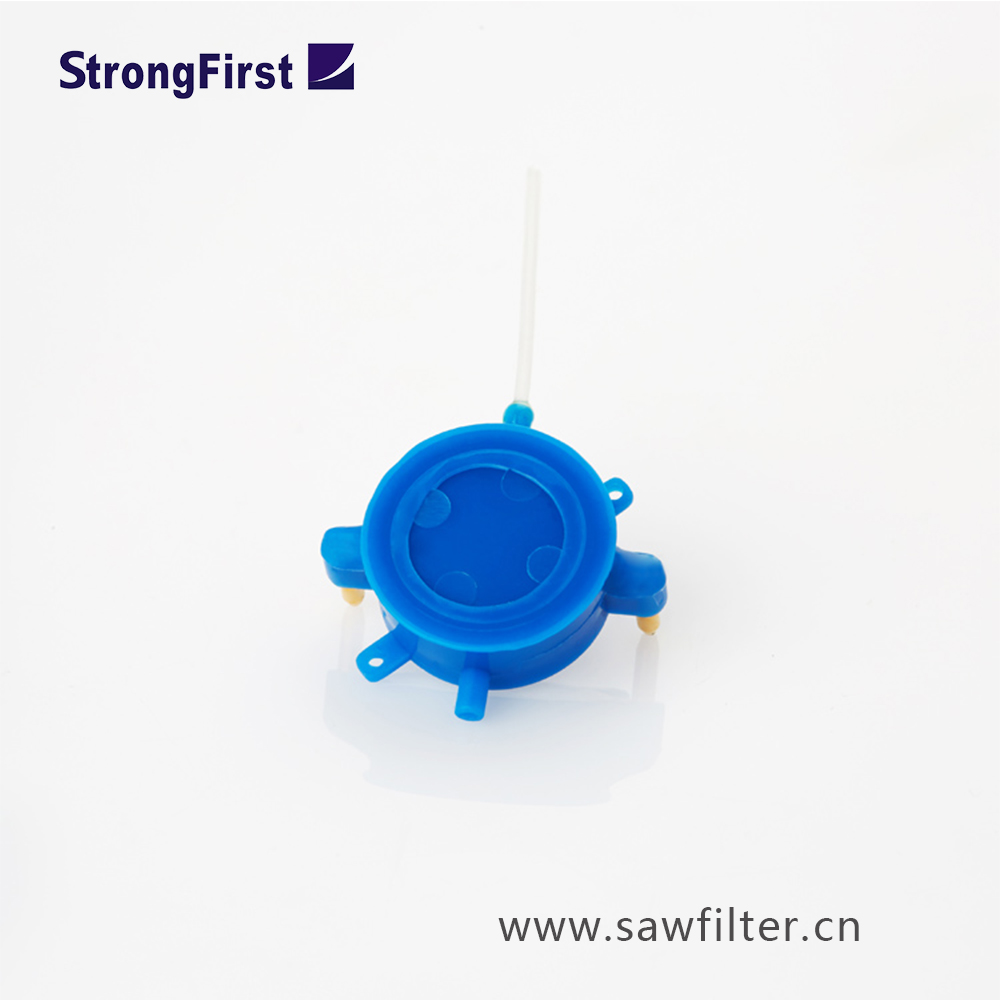

ME7-C2H516-Ф16 Alcohol sensor
Principle Introduction:
Strong First Electronics produces alcohol sensor, C2H516 gas sensor ME7-C2H516, with high accuracy.
ME7-C2H516-Ф16 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Applications :
Widely used for public traffic ,environmental protection alcohol detection.
Technical parameters :
Item | Parameter |
Detection gas | C2H516 Alcohol |
Measurement Range | (0 ~ 1.0)mg/L |
Max detecting concentration | 2.0 mg/L |
Sensitivity | (6±2)µA/(mg/L) |
Response time(T90) | ≤20S |
Load resistance(recommend) | 10Ω |
Repeatability | ±0.006mg/L |
Stability( per month) | <2﹪ |
Output Linearity | linear |
Zero drift(-20℃~40℃) | -0.01 mV~0.01mV |
Storage temperature | 0℃~20℃ |
Humidity Range | 15﹪~90﹪RH |
Temperature Range | -20℃~50℃ |
Pressure range | Standard atmosphere±10% |
Anticipated using life | 2 years(in air) |
