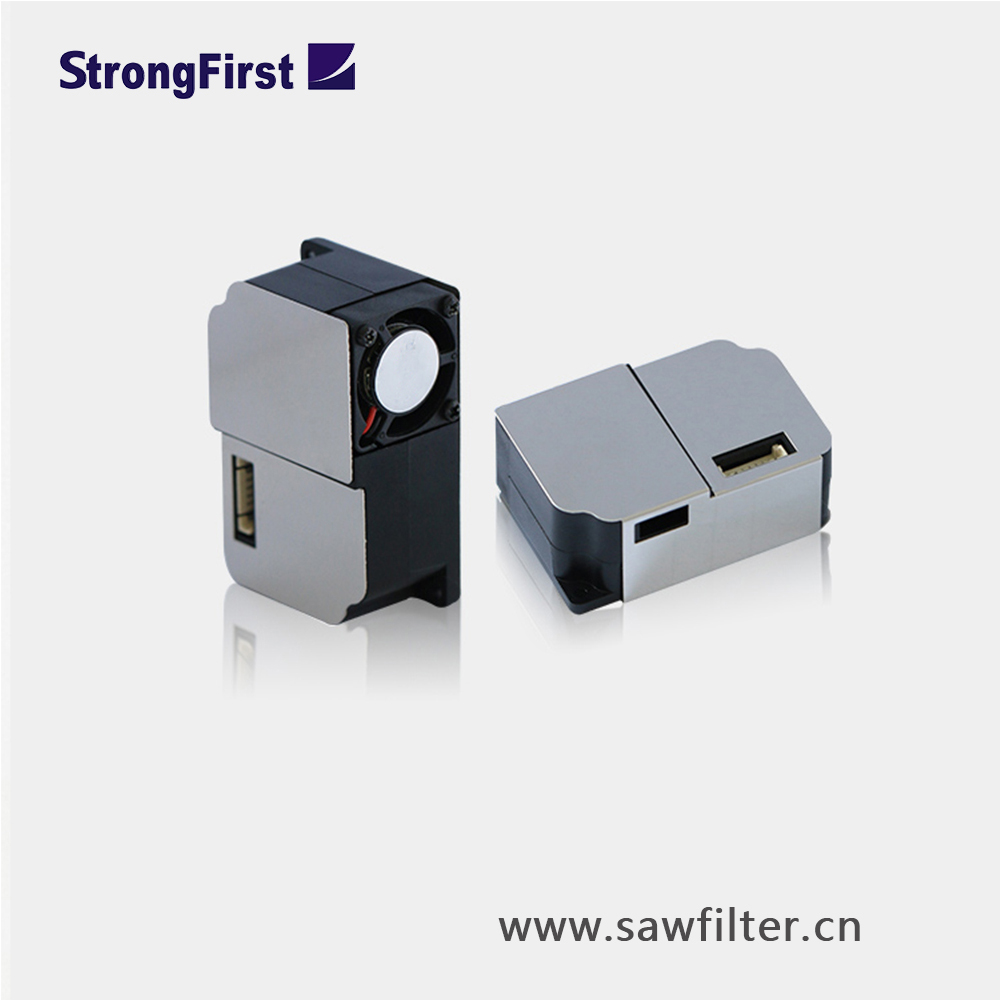

ZH96B Particles Sensor PM2.5 Dust Sensor
Principle Introduction:
ZH96B Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good selectivity and stability. It is easy to use, with UART output & analog output.
Applications :
ZH96B PM2.5 Dust Sensor Particle sensor is widely used in air quality monitoring equipment, air purifiers, ventilation systems, air conditioner, and smart home equipment.
Technical parameters :
| Model | ZH96/ZH96A/ZH96B |
| Detection Gas | PM1.0, PM2.5, PM10 |
| Output | UART OUTPUT (3V TTL) |
| PWM output |
| Working Voltage | 5V±0.1V |
| Working Current | <120mA |
| Dormancy current | <10mA |
| Response Time | T90≤45s |
| Working Humidity | 0~85%RH(no condensation) |
| Working Temperature | -10~50℃ |
| Storage Temperature | -30~70℃ |
| Life Span | 3 years (in air) |
| Dimension | 50x32.4x21mm(LxWxH) |
