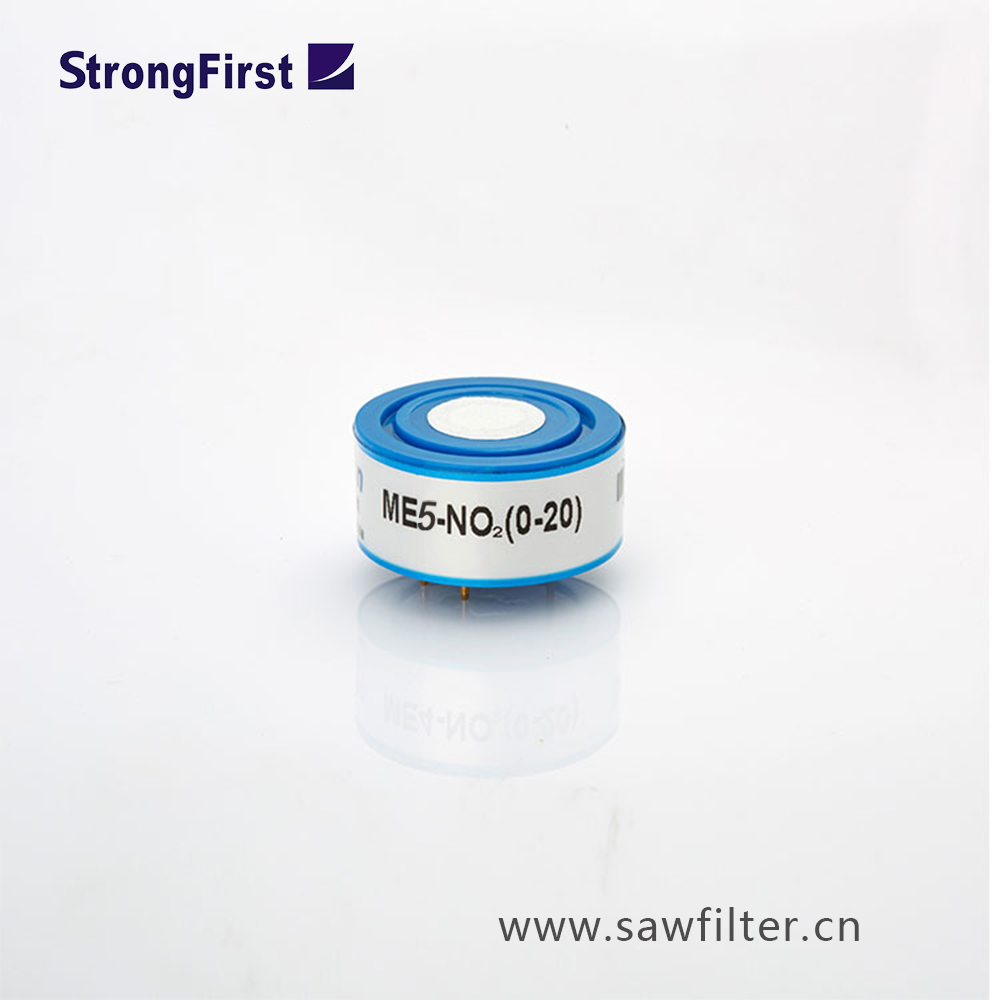

ME5-NO2 Nitrogen Dioxide Gas Sensor
Principle Introduction:
Strong First Electronics, as a professional gas sensor manufacturer, produce NO2 gas sensor, Nitrogen Dioxide sensor for industrial use, using electrochemical working principle.
ME5-NO2 nitrogen dioxide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with nitrogen dioxide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of nitrogen dioxide. So the concentration of the target gas could be got by measuring the value of current.
Applications :
It is used for nitrogen dioxide detection in industrial occasions, mine and environmental protection field.
Technical parameters :
Detection Gas | nitrogen dioxide(NO2) |
Detection Range | 0~20ppm nitrogen dioxide sensor, NO2 gas sensor |
Max range | 150ppm |
Sensitivity | (1.2±0.3)µA/ppm |
Resolution | 0.1ppm |
Response Time(T90) | <30S |
Bias Voltage | 10Ω(recommended) |
Load Resistance | 0mV |
Repeatability | <2﹪Output value |
Stability(/month) | <2﹪ |
Output Linearity | Linear |
Zero drift(-20℃~40℃) | 0.2ppm |
Temperature range | -20℃~50℃ |
Humidity range | 15﹪~90﹪RH |
Pressure range | standard atmospheric pressure±10﹪ |
Lifespan | 2 years(in air) |
