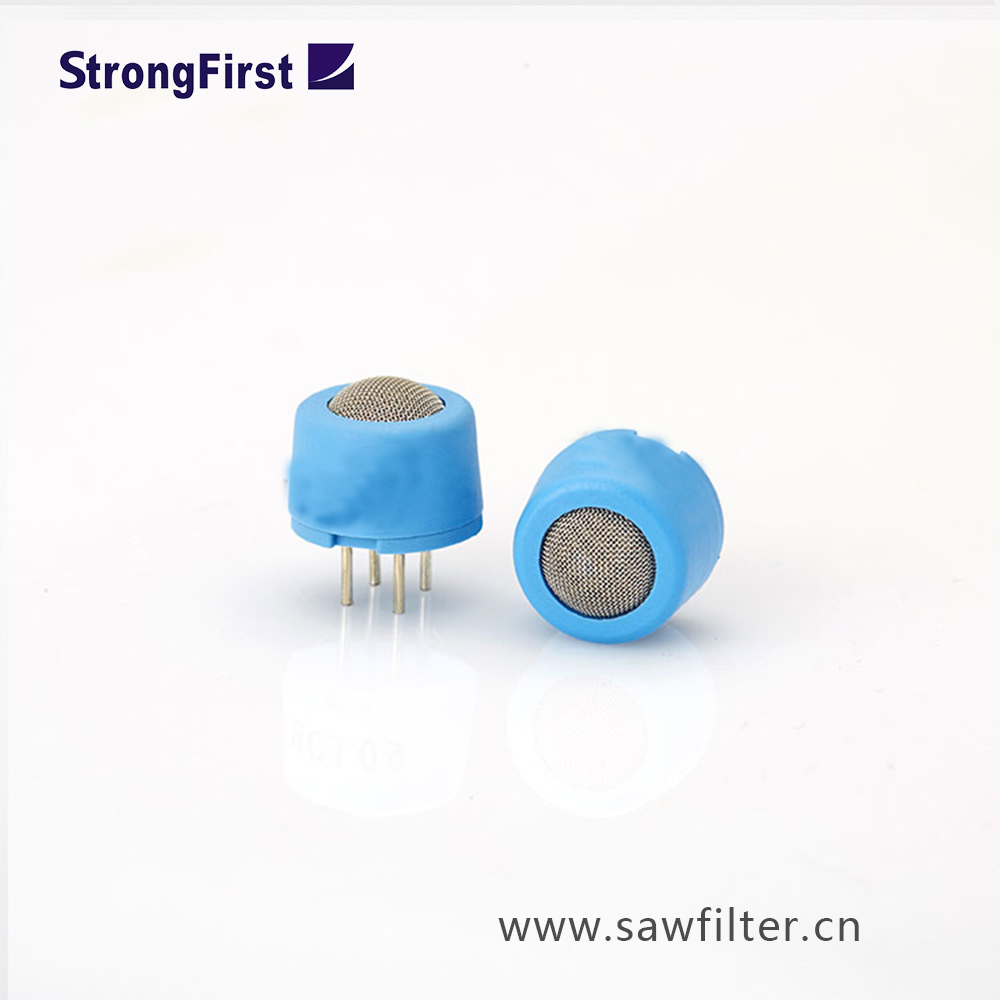

MC890 Catalytic Flammable Gas Sensor
Applications :
It is widely used in industrial occasion to detect the concentration of hydrogen, ethyne, gasoline, VOC such as alcohol, ketone, benzene.
Model | MC890 | |
Sensor Type | Catalytic | |
Standard Encapsulation | Metal, Metallurgy powder mesh | |
Working voltage(V) | 2.5±0.1 | |
Working current(mA) | 100±10 | |
Sensitivity (mV) | 1% H2 | 20~50 |
1% C2H4 | 40~90 | |
Linearity | ≤5% | |
Measuring range(%LEL) | 0~100 | |
Response Time (90%) | ≤10s | |
Recovery Time (90%) | ≤30s | |
Working Environment | -40~+70℃,less than 95%RH | |
Storage Environment | -20~+70℃,less than 95%RH | |
Anti-explosion Mark | ExdibⅠ |
