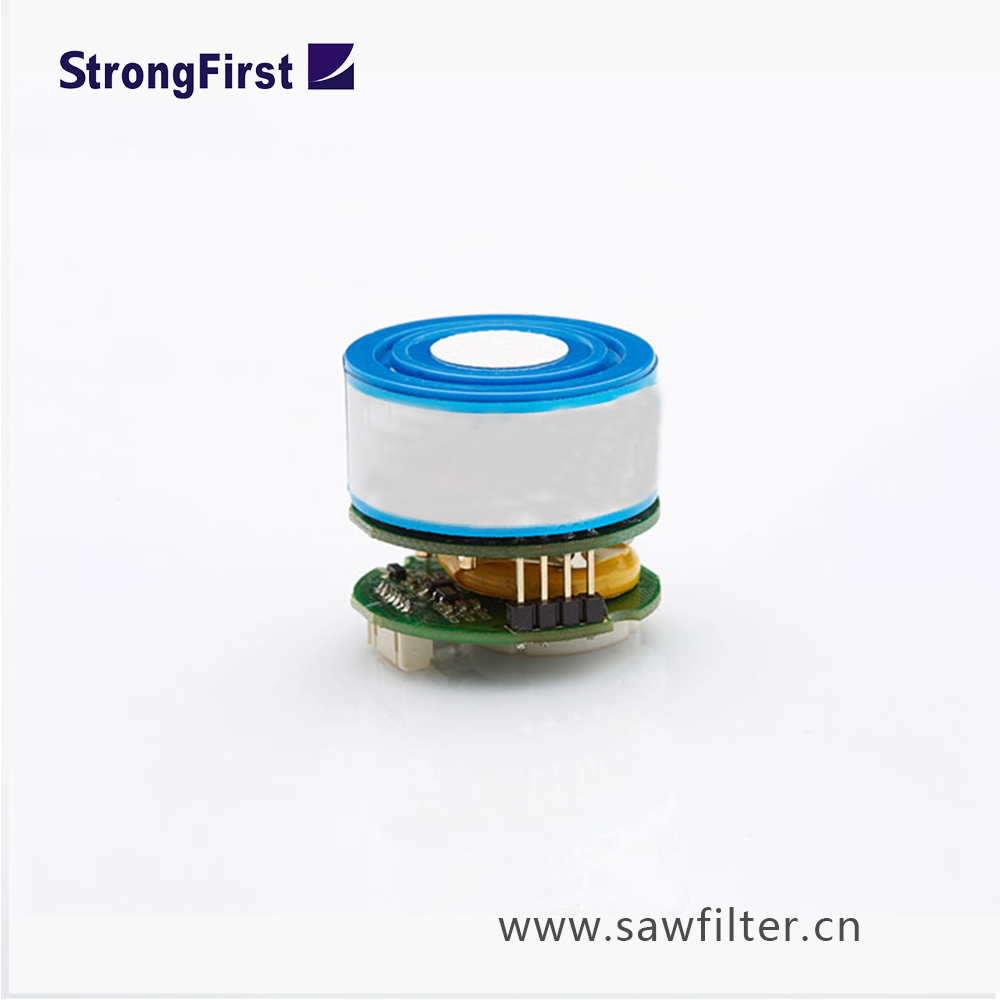

ZE88 Electrochemical Detection Module For ETO
Principle Introduction:
ZE88 is a general-purpose and high-performance electrochemical module. It can detect the benzene, dimethyl benzene, ethylene, chloro ethylene based on electrochemical principle, it has good selectivity and stability. A temperature sensor is built-in for temperature compensation. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’ different detection needs.
Applications :
Petroleum and chemical industry, environment protection filed, detection of benzene、dimethyl benzene、ethylene oxide、chloro ethylene and vinyl benzene
Technical parameters :
|
Model No. |
ZE88 |
|
Target Gas |
benzene、dimethyl benzene、
ethylene oxide、chloro ethylene |
|
Preheat time |
≤3 Min |
|
Response time |
≤60 Sec |
|
Resume time |
≤60 Sec |
|
Resolution |
≤0.5 ppm |
|
Working Voltage |
DC 5.0V±0.1V |
|
Output Data |
DAC(0.4～2V)
standard voltage signal |
|
UART Output |
|
|
Sensor amplified voltage signal |
|
|
Working Life |
2 years |
|
Operating Environment |
Temp.: -20～50℃ |
|
Humidity.: 15%RH-90％RH
(no condensation) |
|
|
Storage Environment |
Temp.: 20～25℃ |
|
Dimension |
Ø32mm*31.2mm |
