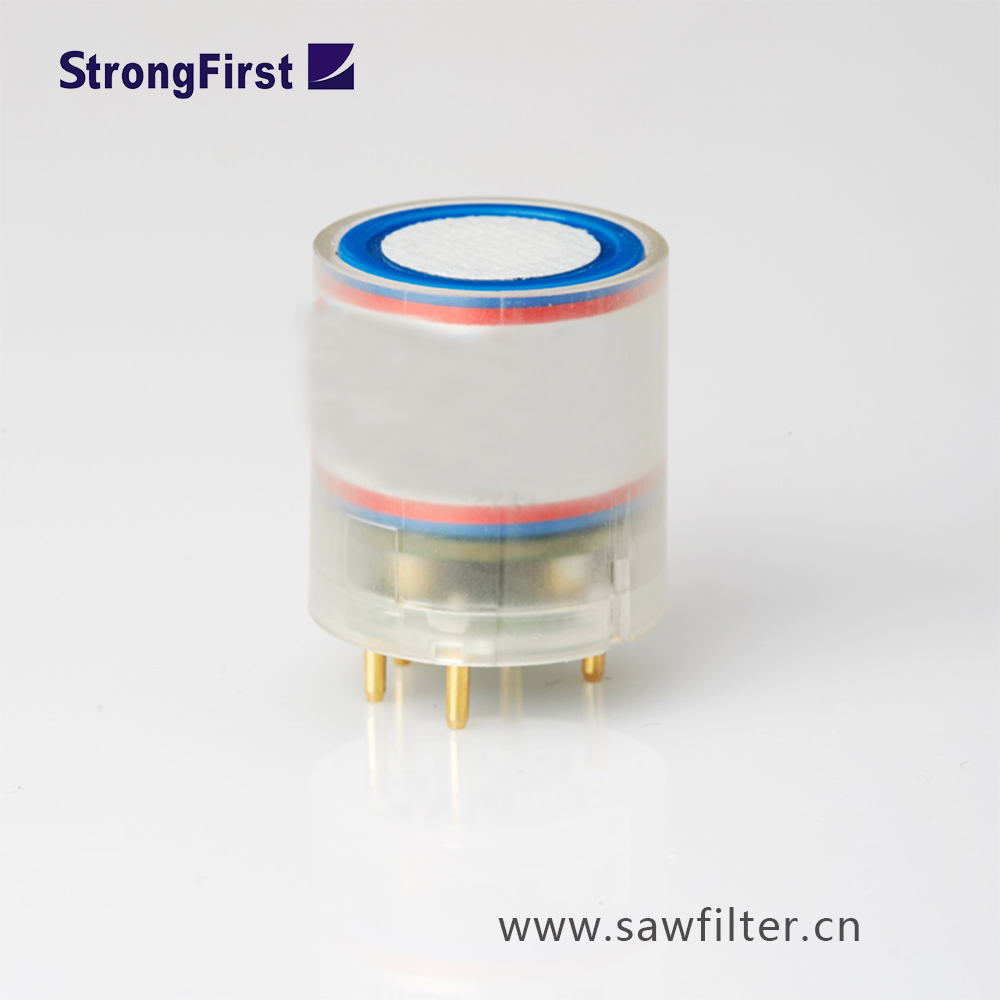

ZE96H2 Electrochemical H2 Gas Sensor Module
Principle Introduction:
ZE96 is a general-purpose and high-performance electrochemical module. It uses three electrodes, electrochemical gas sensor and high-performance micro-processor. By installing different gas sensor, the module could detect relevant gas. It is with built-in temperature sensor to make temperature compensation, which makes it could detect the gas concentration accurately. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’ different detection needs.
Applications :
Portable and fixed gas detector, various gas detection equipment and situation.
Technical parameters :
Model No.
|
ZE96
|
Target Gas
|
CO, SO2, NH3, H2S, O2 and so on
|
Measurement Range
|
C0: 0~1000 ppm SO2: 0~20 ppm NH3: 0~100 ppm……
|
Working Voltage
|
DC 3.7V~9V
|
Working Current
|
< 5 mA
|
Output Data
|
UART Output (3V electrical level)
|
Analog Voltage
|
Working Life
|
> 1 year
|
Operating Environment
|
Temp.: 0~50℃
|
Hum.: 20%RH-90%RH
|
Storage Environment
|
Temp.: 0~55℃
|
Hum.: 20%RH-90%RH
|
Size
|
ø23.5mm*24.5mm
|
Reference Circuit :
