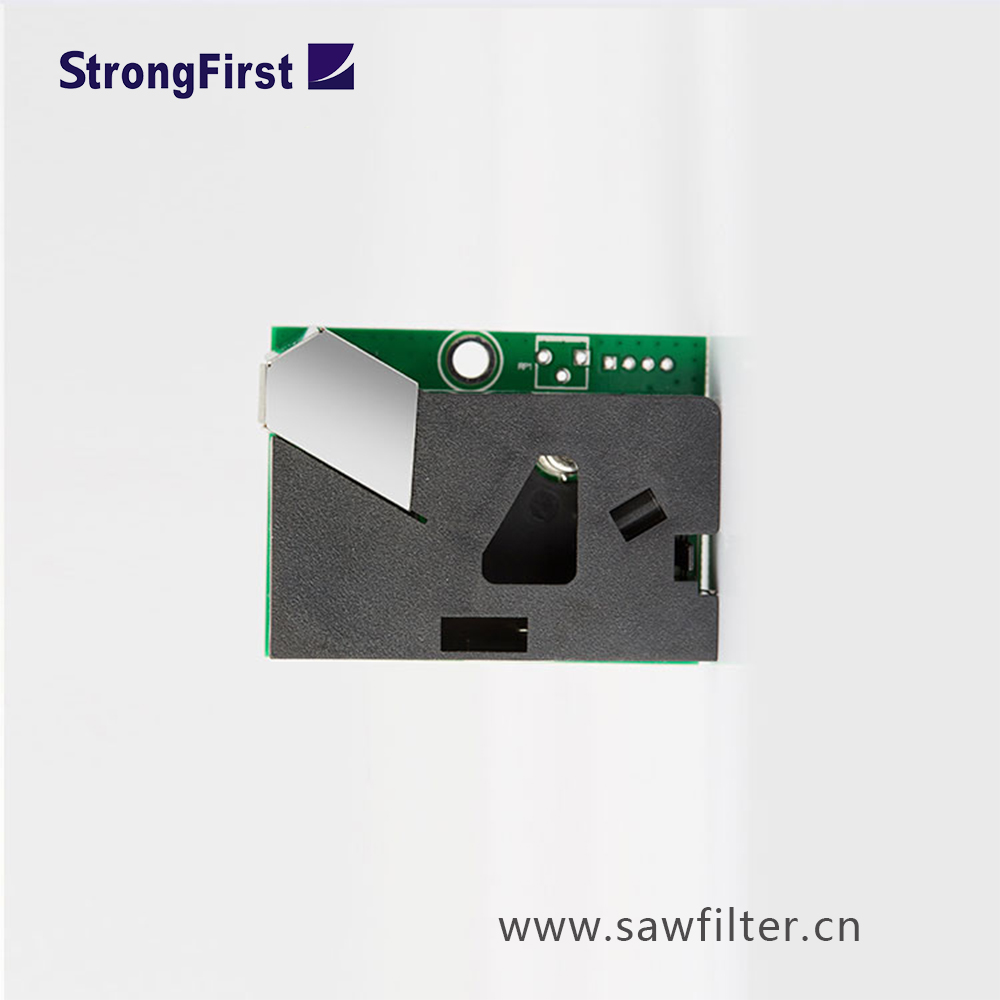

ZPH98V Particles and VOC Module-Manual
Principle Introduction:
ZPH98V dust sensor and VOC sensor integrates mature VOC detection technology and advanced PM2.5 detection technology to detect VOC and PM2.5 at the same time. The VOC sensor in this module has high sensitivity to formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, cigarette smoke, essence and other organic vapors.PM2.5 detection adopts particle counting principle to detect the particles (diameter ≥1μm).
Before delivery, the sensor has been aged, debuged, calibrated and has good consistency and high sensitivity. This dust sensor module has the PWM signal output, and it can be configured to be UART digital serial interface and customized IIC interface.
Applications :
Air refresher, air conditioner, ventilating device, monitor equipment for environment, smoke alarm &etc.
Technical parameters :
Model | ZPH98V | ||
Working voltage range | 5±0.2 V DC | ||
Output | PWM /UART | ||
Detection Ability | VOC | Formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, cigarette smoke, essence &etc. | |
PM2.5 particle | ≥1 μm diameter | ||
Warm-up time | ≤5min | ||
Detection Range for particles | 15000 particles /283ml | ||
Working Current | ≤150mA | ||
Humidity range | Storage | ≤90%RH | |
Working | ≤90%RH | ||
Temperature range | Storage | -20℃~50℃ | |
Working | 0℃~50℃ | ||

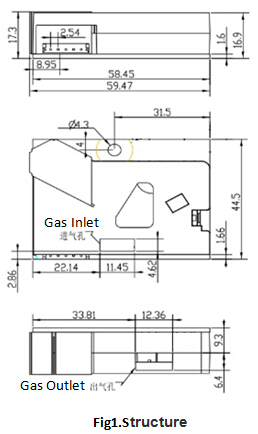

Size | 59.47×44.5×20mm | ||
Physical interface | EH-2.54-5P |
Reference Circuit :
