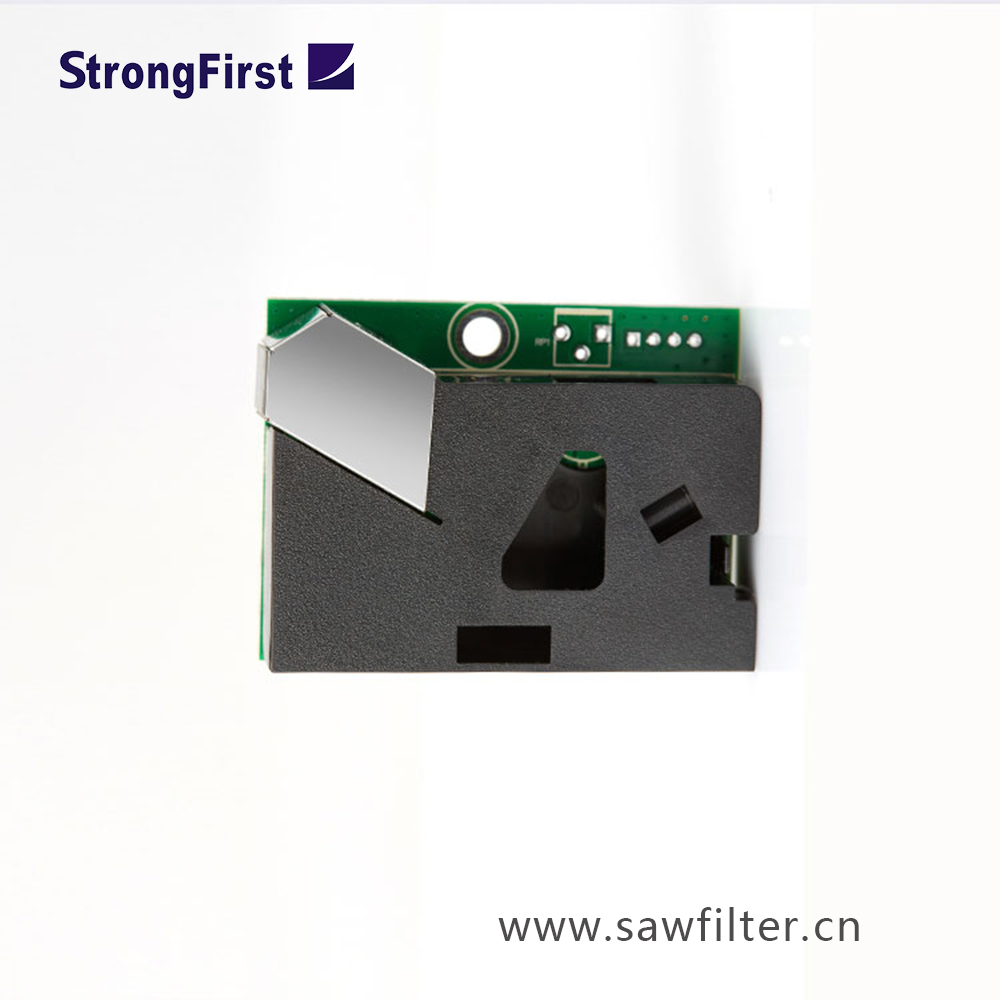

ZPH98 Particles Sensor-Manual
Principle Introduction:
This sensor adopts advanced PM2.5 detection technology to detect PM2.5. PM2.5 detection adopts particle counting principle to detect the particles (diameter ≥1μm).
Before delivery, the sensor has been aged, debuged, calibrated and has good consistency and high sensitivity. It has the PWM signal output, and it can be configured to be UART digital serial interface and customized IIC interface.
Applications :
Air refresher, air conditioner, ventilating device, monitor equipment for environment, smoke alarm &etc.
Technical parameters :
Model | ZPH98 | |
Working voltage range | 5±0.2 V DC | |
Output | PWM /UART | |
Detection ability for PM2.5 particles | ≥1 μm diameter | |
Warm-up time | ≤5min | |
Detection Range for particles | 15000 particles /283ml | |
Working Current | ≤150mA | |
Humidity range | Storage | ≤90%RH |
Working | ≤90%RH | |
Temperature range | Storage | -20℃~50℃ |
Working | 0℃~50℃ | |
Size | 59.47×44.5×20mm | |
Physical interface | EH2.54-5P |
