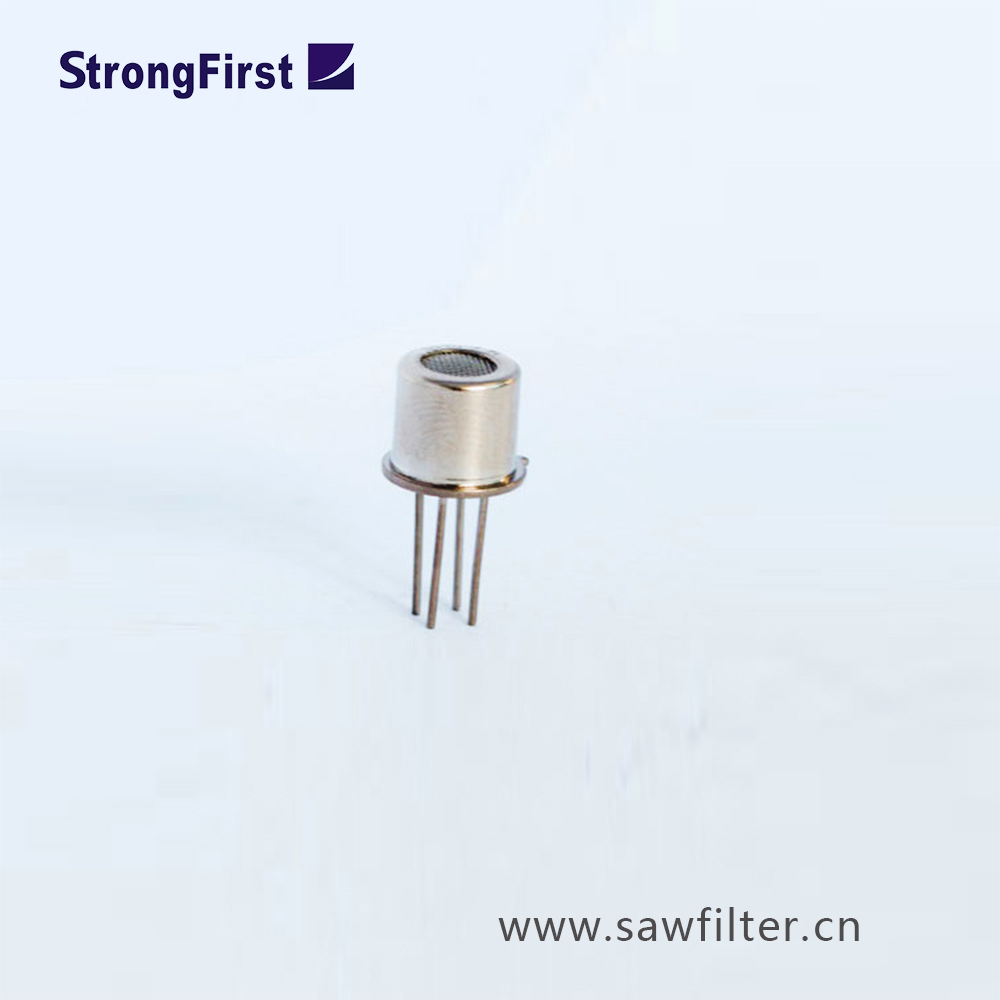

MP-7 Smoke Gas Sensor
Principle Introduction:
MP-7 model with advanced planar construction is comprised of heater and metal oxide semiconductor material of subminiature Al2O3 ceramic plate, fetch out electrode down-lead, encapsulation in metal base and cap. When the target gas exists , the sensor’s conductivity is more higher along with the gas concentration rising. Please use simple electrocircuit, convert change of conductivity to correspond output signal of gas concentration.
Applications :
Domestic smoke leakage alarm, industrial smoke gas alarm and portable smoke detector.
Technical parameters :
|
Model |
MP-7 |
||
|
Sensor Type |
Flat Surfaced Semiconductor |
||
|
Standard Encapsulation |
Metal Cap |
||
|
Target Gas |
C3H8, smoke |
||
|
Detection range |
200~10000ppm C3H8 |
||
|
Standard Circuit
Conditions |
Loop Voltage |
Vc |
≤10V DC |
|
Heater Voltage |
VH |
5V±0.1V AC or DC |
|
|
Load Resistance |
RL |
Adjustable |
|
|
Sensor character under standard test conditions |
Heater Resistance |
RH |
105Ω±10Ω (room tem.) |
|
Heater consumption |
PH |
≤240mW |
|
|
Sensitivity |
S |
Ro(in air)/Rs( in 2000ppm C3H8)≥3 |
|
|
Output voltage |
Vs |
2.5V~4.0V (in 2000ppm C3H8) |
|
|
Concentration Slope |
α |
≤0.6(R3000ppm/R500ppm C3H8) |
|
|
Environment Conditions |
Operation Temp. |
Tao |
-10℃~50℃ |
|
Storage Temp. |
Tas |
-20℃~70℃ |
|
|
Relative Humidity |
RH |
Less than 95%RH |
|
|
O2 concentration |
O2 |
21%±1%(can’t less than 18%)
O2 concentration effects sensor’s performance. |
|
|
Preheat time |
Not less than 48 hours |
||
