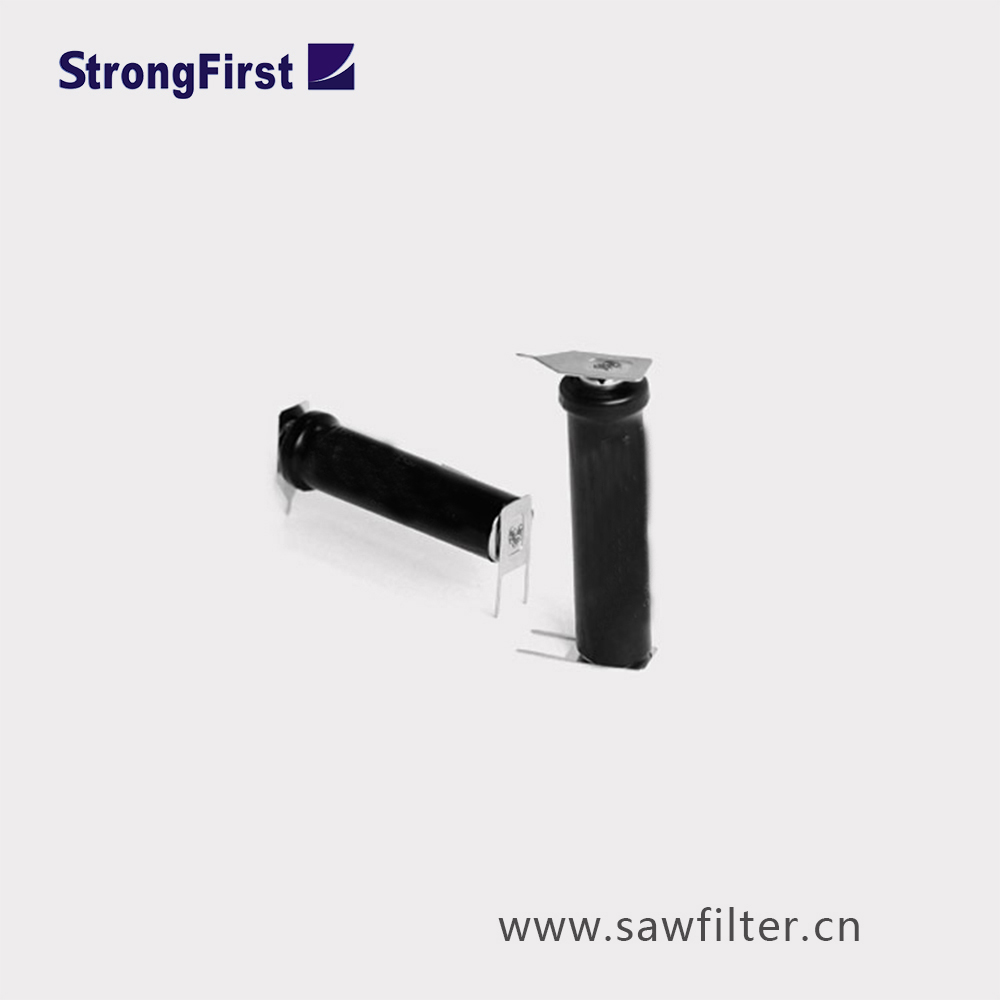

ME7-CO-D14x50-C Carbon Monoxide sensor/CO Sensor
Principle Introduction:
ME7-CO-Ф14x15-C electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Applications :
Widely used in commercial and residential occasion to detect CO concentration.
Technical parameters :
Detection gas |
CO |
Measurement Range |
0~1000ppm |
Max detecting concentration |
2000ppm |
Sensitivity |
(1~3) nA/ppm |
Resolution ratio |
1ppm |
Response time(T90) |
≤30S |
Load resistance(recommended) |
1000Ω |
Repeatability |
<3﹪output value |
Output Linearity |
linear |
Zero drift(-20℃~40℃) |
≤10ppm |
Storage temperature |
-20℃~50℃ |
Storage Humidity |
15﹪~90﹪RH |
Pressure range(kPa) |
90-110% standard atmosphere |
Anticipated using life |
5 years |
