GPS&GLONASS Antenna

Frequency Range

1575.42~1610MHz

Polarization

RHCP

Impendance

50Ω

Dimension

25*25*6mm

Gain

28±2dB

Noise Figure

≤1.5dB

Supply Voltage

3~5V DC

Current Consumption

＜15mA

V.S.W.R

＜2.0

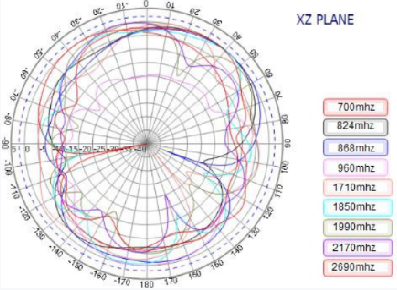

LTE Antenna MIMO

Frequency Range

698~960MHz/1710~2690MHz

V.S.W.R

＜3.0

Polarization

Linear

Gain

3dBi

Impendance

50Ω

WIFI Antenna MIMO×4

Frequency Range

2400~2483.5MHz/4900~5825MHz

V.S.W.R

＜2.5

Polarization

Linear

Gain

2dBi

Impendance

50Ω

Mechanical

Cable

RG174

Connector

SMA or others

Radome Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
