Dimension（Unit：mm）
Electrical Characteristics
2.1 GSM Antenna
No. | Item | Specifications |
1 | Frequency（MHz） | 700-2600MHz |

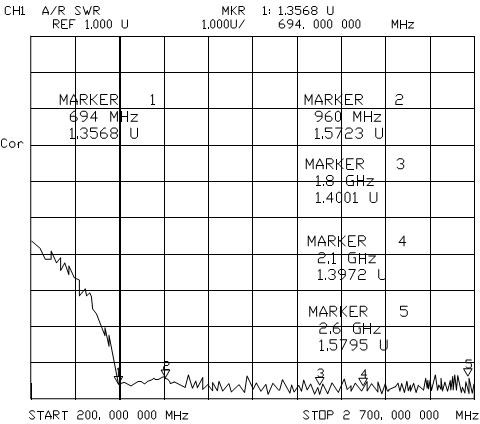

2 | V.S.W.R（in BW ） | ≤1.8︰1 |
3 | Gain（Zenith） | 2dB |
4 | Polarization | Vertical |
5 | Impedance | 50 Ω |
6 | Max Power | 10W |
No. | Item | Specification |
1 | Cable | RG174 3m/5m or others |
2 | Connector | FAKRA or others |
3 | Plastic Housing | Black |
3 | Thickness | 4.5mm |
4 | Length | 115mm |
5 | Wldth | 21.5mm |
