STF26F/STF26FS音叉晶体

STF26F/STF26FS音叉晶体

Frequency range:32.768K

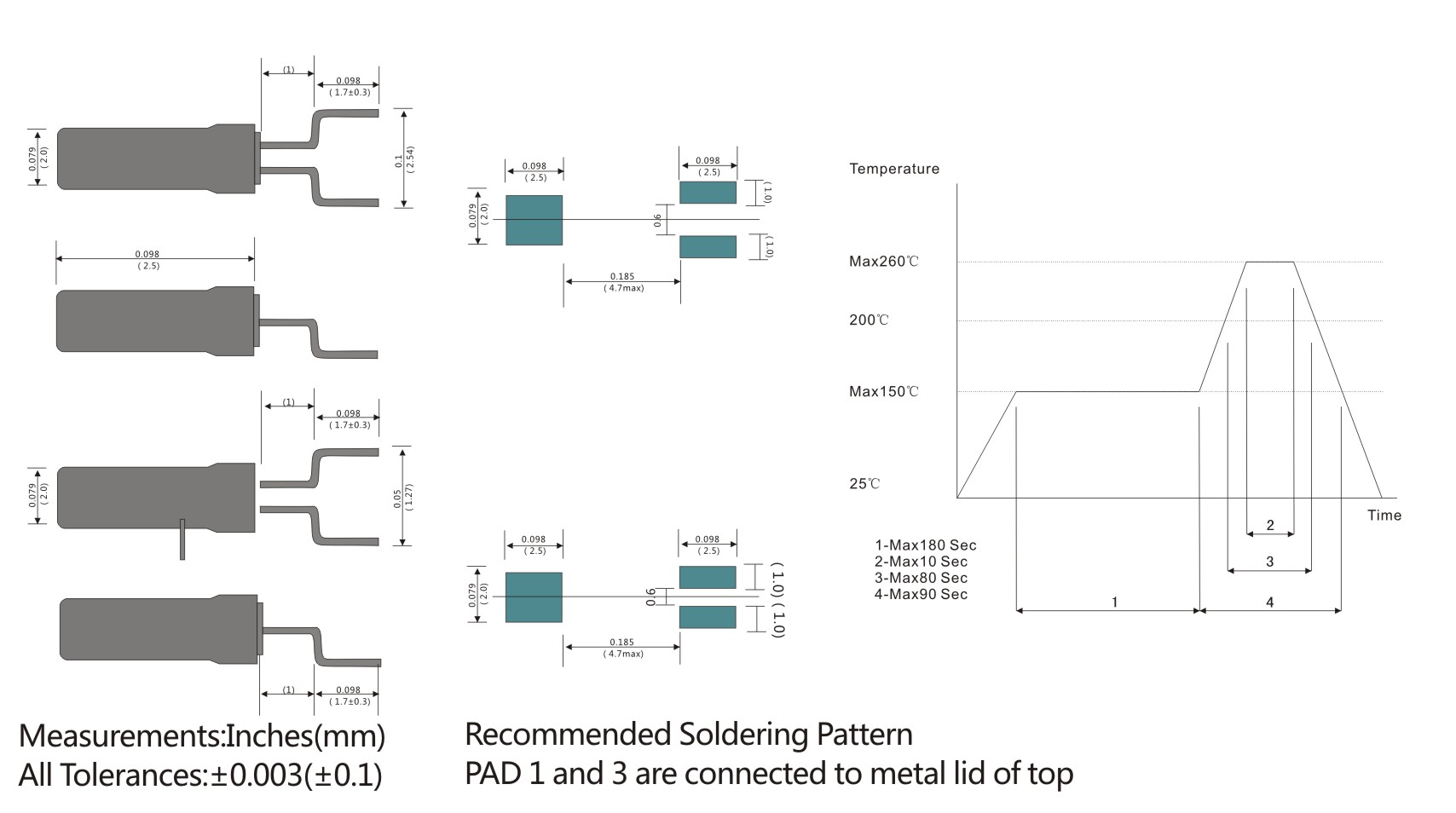

Suited for automatic mouting and reflow sloderinng.

Crystal resonators offering excellent stability for use in microprocessors and other standard clocks

产品介绍
Type STF26F/STF26FS
Freq. range 32.768K
Frequency tolerance （at 25°C） ±5ppm~±100ppm
Operating temperature （-40~+85℃）
Temperature characteristics
-Turnover temperature
-Parabolic curvature constant 		25°C-+5℃
-0.045x10 -6 /℃ 2 Max.
Equivalent series resistance 50Kohm Max
Drive level 1.0uW
Shunt capacitance 1.55pF Typical
Insulation Resistance 500Mohm Min
Load capacitance 5-30pF
Aging ±3ppm Max
>>
